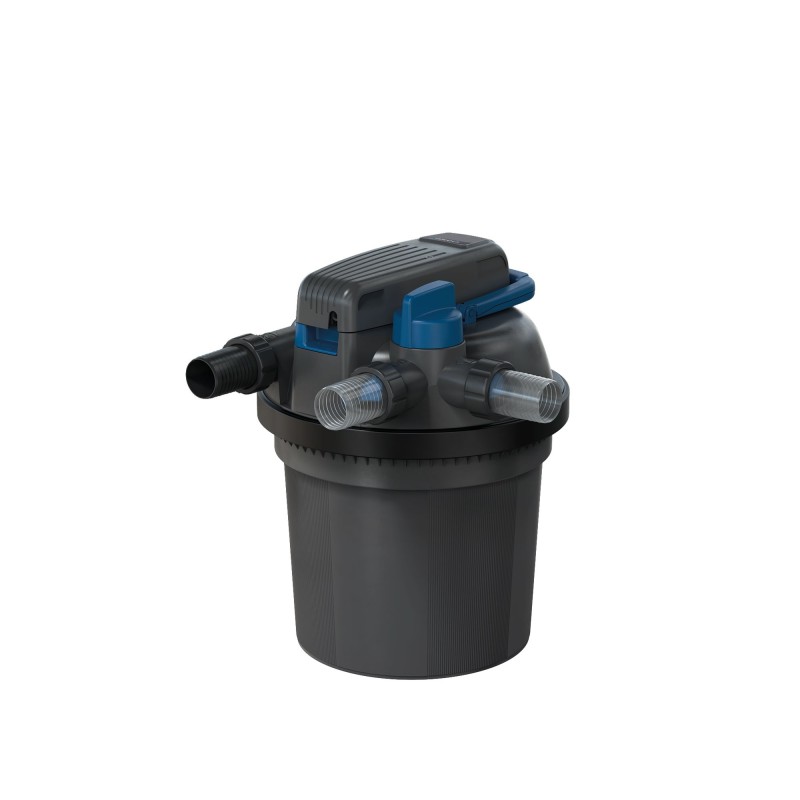

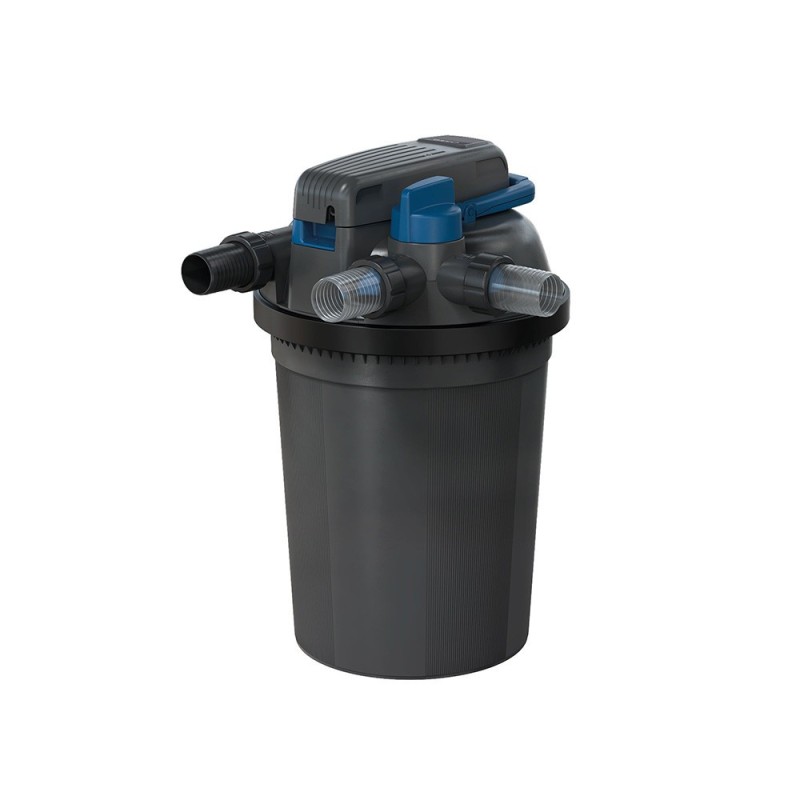

Oase's third generation of in-line pressure filters is a versatile solution, providing mechanical, biological filtration, and ultraviolet clarification (UVC). With a compact design and high filtration capacity, these external pond filters are ideal for achieving water clarity in fountains, formal spillways, pond-free, and water garden applications.
Oase's third generation of in-line pressure filters is a versatile solution, providing mechanical, biological filtration, and ultraviolet clarification (UVC). With a compact design and high filtration capacity, these external pond filters are ideal for achieving water clarity in fountains, formal spillways, pond-free, and water garden applications. Available in three models with built-in UVC (24W, 42W, or 60W), the FiltoClear Pressurized Filters cover a range of max flow from 2,400 to 4,500 GPH and can effectively filter ponds ranging from 3,400 to 8,200 gallons. Each model includes metric step barbs and 1.5" / 2" Schedule 40 adapter fittings for both 1.5" and 2" flexible and rigid PVC installations.
The FiltoClear is user-friendly, incorporating clear unions with blue flow indicator gaskets and a 2-way valve for effortless backflushing and waste direction through Easy-Clean Technology. Oase simplified maintenance by monitoring UVC, filter performance, and pollutant levels and replacing the UVC lamp without opening the filter. A simple rotation of the cleaning switch, along with a few pulls on the cleaning handle, effectively removes trapped debris inside the filter without the need to get your hands dirty.
The FiltoClear filters boast a sophisticated design with interactive blue parts and a sleek, high-powered ballast housing featuring a visible power indicator, ensuring functionality and aesthetic appeal. The impact-resistant body allows for burial up to the metal clamping lock ring, and discreet concealment is possible with the Oase FiltoCap (sold separately). The filtration system incorporates three densities of replaceable coarse and fine filter foams, plates, and extra supports, enhancing cleaning efficiency and ensuring an extended service life.
| Application | Out of Pond | Out of Pond | Out of Pond |
| Filter Dimensions | 15"L x 15"W x 19.25"H | 15"L x 15"W x 24"H | 15"L x 15"W x 28.75"H |
| Pond Size With Fish* | Up to 1,700 Gallons | Up to 2,600 Gallons | Up to 4,100 Gallons |
| Pond Size Without Fish | Up to 3,400 Gallons | Up to 5,200 Gallons | Up to 8,200 Gallons |
| Max Flow Rate | 2,400 GPH | 3,450 GPH | 4,500 GPH |
| Max Pressure (Feet of Head Pressure) |
2.9 psi / 7 FoH | 2.9 psi / 7 FoH | 2.9 psi / 7 FoH |
| Max Pump Input Pressure (Feet of Head Pressure) |
7.25 psi / 17 FoH | 7.25 psi / 17 FoH | 7.25 psi / 17 FoH |
| Hose Size | 1.5" & 2" Kink-Free or SCH 40 PVC* | 1.5" & 2" Kink-Free or SCH 40 PVC* | 1.5" & 2" Kink-Free or SCH 40 PVC* |
| Fittings | 1.5"/2" Step Fittings, 1.5"/2" Sch40 Adapters |
1.5"/2" Step Fittings, 1.5"/2" Sch40 Adapters |
1.5"/2" Step Fittings, 1.5"/2" Sch40 Adapters |
| Power Cord | 16' | 16' | 16' |
| Easy Clean Feature | Yes | Yes | Yes |
| UVC Cleaning Rotor | No | Yes | Yes |
| UVC Bulb Size | 24-Watts | 42-Watts | 60-Watts |
| 3 Density Filter Foam Set | Filter Foam 3400 (10, 20, & 30 pores per inch) |
Filter Foam 5200 (10, 20, & 30 pores per inch) |
Filter Foam 8200 (10, 20, & 30 pores per inch) |
| Recommended Pump (Sold Separately) |
AquaMax Eco Classic 1,900 GPH AquaMax Eco Premium 2,500 GPH |
AquaMax Eco Classic 2,700 GPH AquaMax Eco Premium 3,500 GPH |
AquaMax Eco Classic 3,600 GPH AquaMax Eco Premium 4,500 GPH |
| Optional FiltoCap (Sold Separately) |
Stone Grey FiltoCap | Stone Grey FiltoCap | Stone Grey FiltoCap |
| MPN | 91669 | 91670 | 91671 |
| Warranty | 2-Year | 2-Year | 2-Year |
