Triton Check Valve

Check Valves mount the pump in the Skimmer to maintain water in biological filters and keep beneficial bacteria hydrated

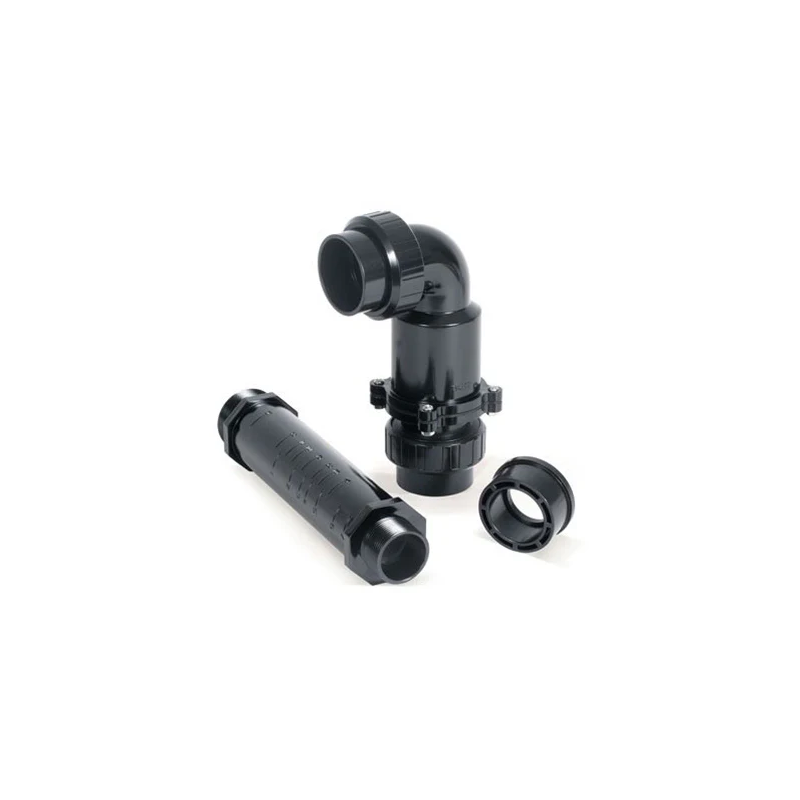

Atlantic's Triton TR215CV Check Valve is the first and only specifically designed for water feature use
Included adapters accommodate multiple pump, skimmer, vault and plumbing options
Single unions above and below the check valve speed removal of the valve and pump for servicing, maintenance and winterizing

*NOTE* the Triton Check Valve will work with all 1½" & 2" discharge TidalWave pumps, and all Atlantic equipment. The discharge pipe must be extended using 2" PVC pipe and a slip x slip coupling when installed within the PV2300, PS15000 or if Pump Vault extensions are used.

Model: TR215CV
Valve Dimensions: 5⅝"L x 3½" W x 10"H
Pipe Dimensions: 11⅞"L x 2⅝"W
Pipe Inlet: 1½" or 2" MIPT
Pipe Outlet: 2" Sch 40 pipe
Inlet: 2" socket Outlet: 1½" or 2" Sch 40 socket Includes: 2" check valve with unions, 1½" outlet fitting, 1" thru 1½" tubing adapter, discharge pipe and extension
Warranty: 3 year
