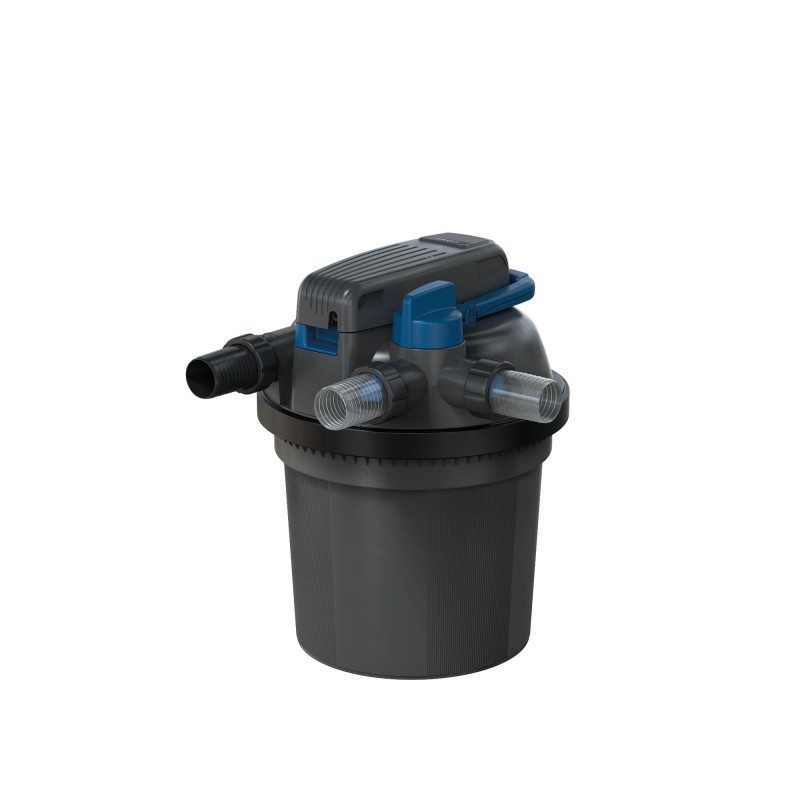

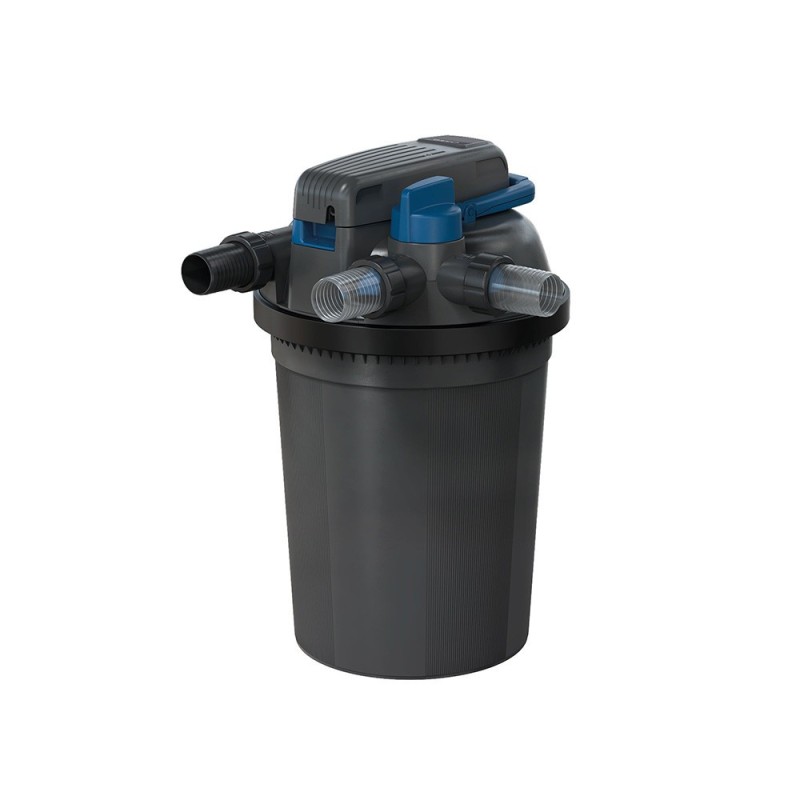

Oase FiltoClear Pressurized Filter System 3rd Gen

Oase FiltoClear Pressurized Filter System 3rd Gen is a versatile solution, providing mechanical, biological filtration, and ultraviolet clarification (UVC). With a compact design and high filtration capacity, these external pond filters are ideal for achieving water clarity in fountains, formal spillways, pond-free, and water garden applications. Available in three models with built-in UVC (24W, 42W, or 60W), the FiltoClear Pressurized Filters cover a range of max flow from 2,400 to 4,500 GPH and can effectively filter ponds ranging from 3,400 to 8,200 gallons. Each model includes metric step barbs and 1.5" / 2" Schedule 40 adapter fittings for both 1.5" and 2" flexible and rigid PVC installations.

The FiltoClear is user-friendly, incorporating clear unions with blue flow indicator gaskets and a 2-way valve for effortless backflushing and waste direction through Easy-Clean Technology. Oase simplified maintenance by monitoring UVC, filter performance, and pollutant levels and replacing the UVC lamp without opening the filter. A simple rotation of the cleaning switch, along with a few pulls on the cleaning handle, effectively removes trapped debris inside the filter without the need to get your hands dirty.

The FiltoClear filters boast a sophisticated design with interactive blue parts and a sleek, high-powered ballast housing featuring a visible power indicator, ensuring functionality and aesthetic appeal. The impact-resistant body allows for burial up to the metal clamping lock ring, and discreet concealment is possible with the Oase FiltoCap (sold separately). The filtration system incorporates three densities of replaceable coarse and fine filter foams, plates, and extra supports, enhancing cleaning efficiency and ensuring an extended service life.

• Filtoclear 3400 Pressurized Filter w/UV
• Max. Pond Size - 3400 gal.
  (Ponds with plants/ *Light Fish Stocks)
• Max. Pond Size - 1700 gal.
  (Ponds with plants/ *Average Fish Stocks)
• Max. Pond Size - 850 gal.
  (Ponds with plants/ Koi/ *High Fish Stocks)
• Max Operating Pressure - 7.25 psi / 17ft. of head
• Flow Rate - 2400 GPH
• Type - Pressurized External Filter
• Inlet / Outlet - 1 1/2" - 2" Threaded and Schedule 40 (PVC)
• UV Light - 24 Watts
• Cord Length - 16'
• Dimensions - 15" x 19.25"
• Warranty - 2 Year

• Filtoclear 5200 Pressurized Filter w/UV
• Max. Pond Size - 5200 gal.
  (Ponds with plants/ *Light Fish Stocks)
• Max. Pond Size - 2600 gal.
  (Ponds with plants/ *Average Fish Stocks)
• Max. Pond Size - 1300 gal.
  (Ponds with plants/ Koi/ *High Fish Stocks)
• Max Operating Pressure - 7.25 psi / 17ft. of head
• Flow Rate - 3450 GPH
• Type - Pressurized External Filter
• Inlet / Outlet - 1 1/2" - 2" Threaded and Schedule 40 (PVC)
• UV Light - 42 Watts
• Cord Length - 16'
• Dimensions - 15" x 24"
• Warranty - 2 Year

• Filtoclear 8200 Pressurized Filter w/UV
• Max. Pond Size - 8200 gal.
  (Ponds with plants/ *Light Fish Stocks)
• Max. Pond Size - 4100 gal.
  (Ponds with plants/ *Average Fish Stocks)
• Max. Pond Size - 2050 gal.
  (Ponds with plants/ Koi/ *High Fish Stocks)
• Max Operating Pressure - 7.25 psi / 17ft. of head
• Flow Rate - 4500 GPH
• Type - Pressurized External Filter
• Inlet / Outlet - 1 1/2" - 2" Threaded and Schedule 40 (PVC)
• UV Light - 60 Watts
• Cord Length - 16'
• Dimensions - 15" x 28.75"
• Warranty - 2 Year
